What GPM is this J-Rod set up for?

It's matched for 5.0 to 5.5 GPM pressure wash systems. The nozzle sizes are selected for that flow range, so run it on a machine in that GPM band for correct results.

What nozzles are included?

Four nozzles total: two brass downstream chemical application tips (1/4" MEG, 0° size 50.0 and 25° size 40.0) and two stainless steel rinse tips (1/4" MEG, 0° and 25°, size 9.0), all on a General Pump 4-tip stainless holder.

How does it mount and switch between nozzles?

It attaches to your existing spray gun wand and holds four preselected nozzles on the J-Rod. You rotate to the tip you need, so you can go from applying chemical to rinsing without swapping quick-connect nozzles or carrying loose tips.

Can I add a downstream chemical injector?

Yes, an optional downstream bypass chemical injector is available separately in 3/8" and 1/2" versions to pair with this J-Rod.

APS PartsSKU: DSJROD 5-5.5 GPM

5.0-5.5 GPM Downstream JROD W/ 2 Each Chem Application & 2 Each SS Rinse Nozzles

Name: 5.0-5.5 GPM Downstream JROD W/ 2 Each Chem Application & 2 Each SS Rinse Nozzles
Brand: APS Parts
SKU: DSJROD 5-5.5 GPM
Price: 49.95 USD
Availability: BackOrder

$4995

Ships LTL freight · we'll confirm a delivery window

VisaMastercardAmexDiscoverPayPal

Available to order

Freight quote

Warranty

Financing available

Low Price Guaranteed

Found it cheaper somewhere else? We'll match it. Call 800-493-7692 and we'll beat the deal.

Overview

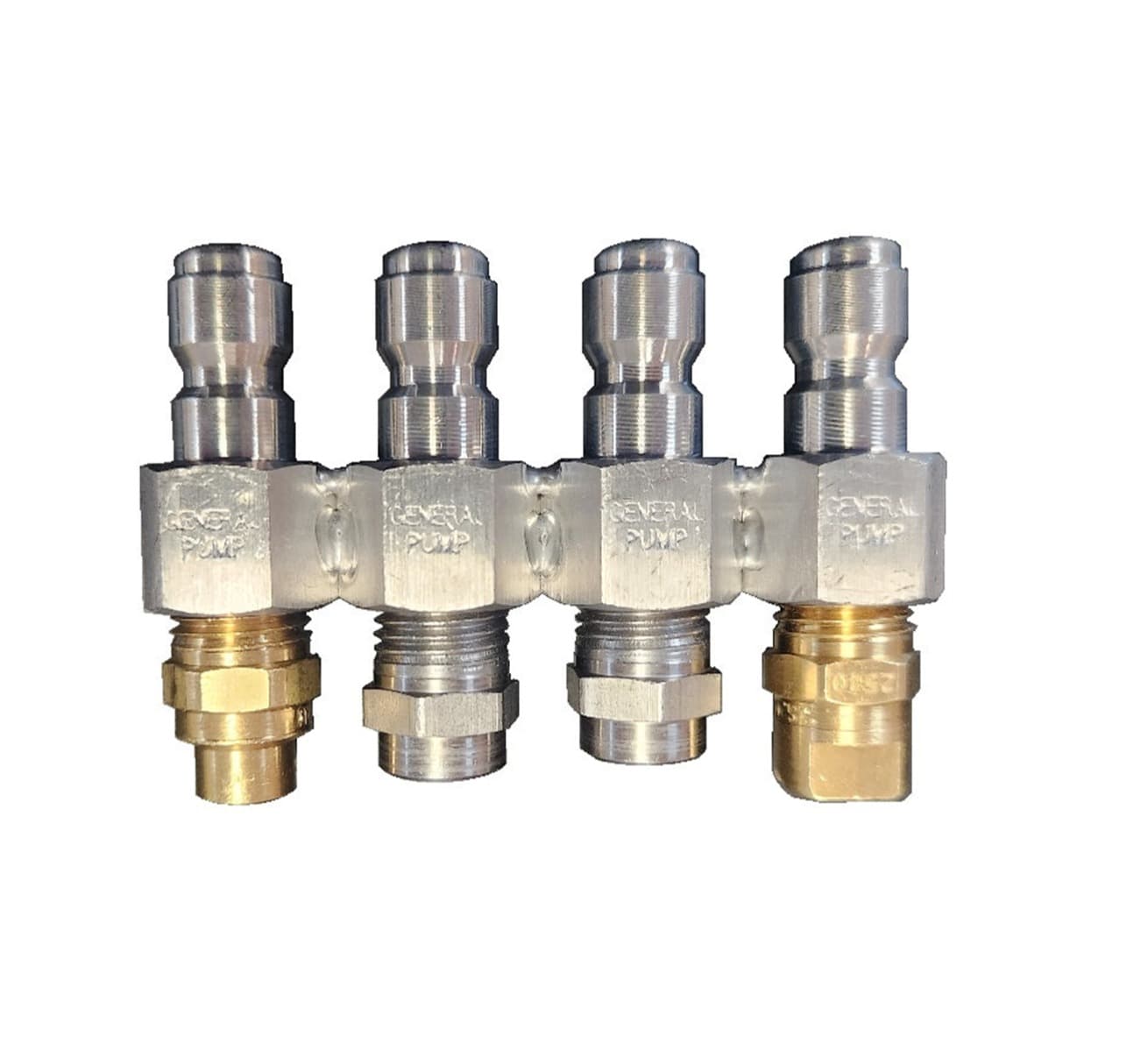

This is a preassembled stainless steel downstream J-Rod loaded with four matched nozzles, set up for 5.0 to 5.5 GPM pressure wash systems. It mounts on your existing spray gun wand and lets you rotate between four preselected tips — two brass downstream chemical application nozzles and two stainless steel rinse nozzles — so you can switch from applying chem to rinsing without swapping quick-connect tips or carrying loose nozzles. The 1/4" MEG nozzles ride on a General Pump 4-tip stainless holder. It's built for contractors running soft-wash and downstream jobs who want to cover different heights, angles, and distances fast and stop losing individual QC nozzles.

What's included

Preassembled stainless steel J-Rod — no build required
Four matched nozzles: 2 brass downstream chem + 2 SS rinse
General Pump 4-tip stainless steel nozzle holder
Sized for 5.0 to 5.5 GPM systems
Rotate between 4 preset tips on your existing gun wand
1/4" MEG nozzles throughout
Reaches multiple heights, angles, and distances
Ends lost nozzles and eliminates QC tips on individual nozzles

Specifications

GPM: 5.0–5.5
Assembly: Stainless steel J-Rod
Nozzle Holder: General Pump 4-tip, stainless steel
Chemical Nozzles: (2) brass, 1/4" MEG — 0° size 50.0 and 25° size 40.0
Rinse Nozzles: (2) stainless steel, 1/4" MEG — 0° and 25°, size 9.0
Nozzle Thread: 1/4" MEG
