SG-21290C
Ships LTL freight · we'll confirm a delivery window
Low Price Guaranteed
Found it cheaper somewhere else? We'll match it. Call 800-493-7692 and we'll beat the deal.
Overview

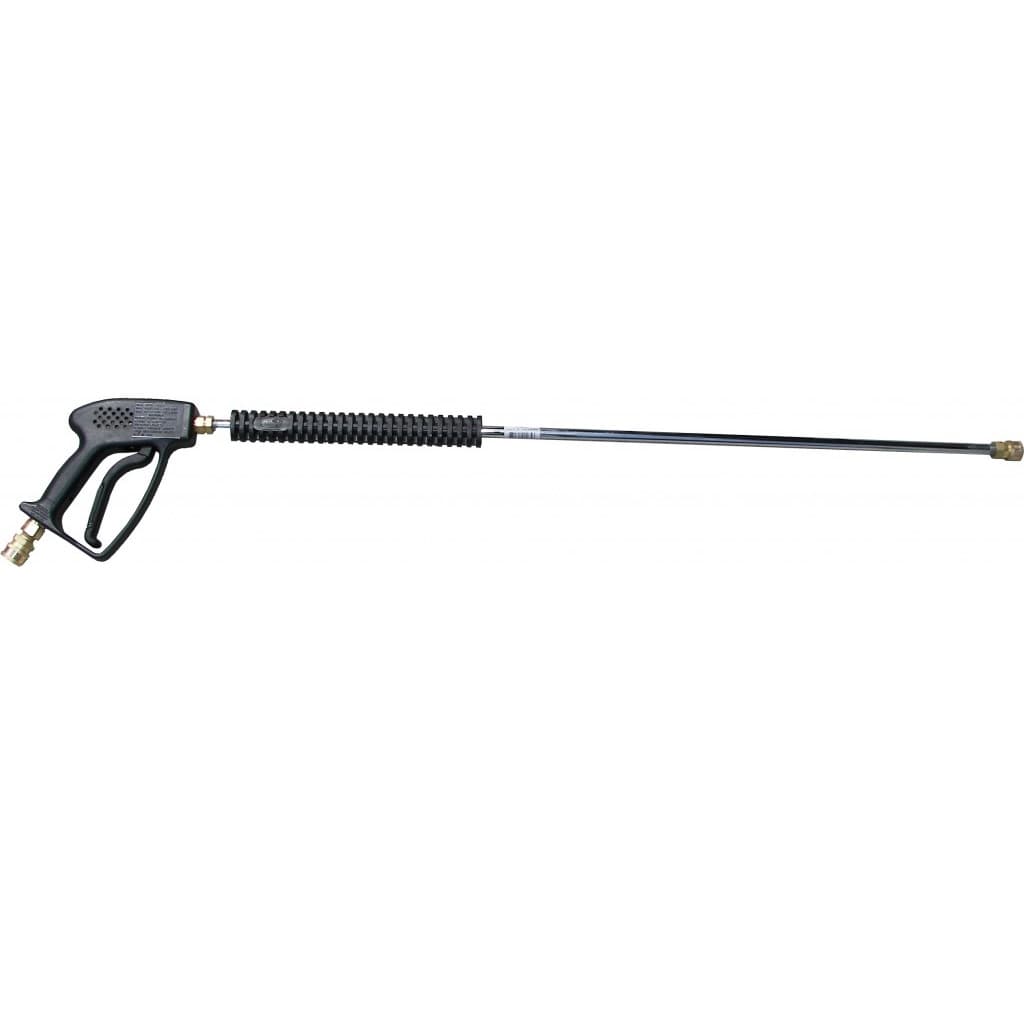

The SG-21290C is a heavy-duty trigger shut-off gun rated for 5000 PSI, 10 GPM, and water up to 300°F. It's an American-made, rear-load gun built for operators who run long jobs — the ergonomic handle and trigger and the angled discharge tube reduce hand fatigue over a full shift. Internals are stainless steel (control bolt, cam, seat, and ball) with a machined brass inlet fitting and plated-steel inlet and discharge tubes, so it holds up on hot-water and high-pressure machines. A safety lock stops accidental valve opening. It takes a 3/8" FNPT inlet and 1/4" FNPT outlet, weighs 1.8 lbs, and runs non-weep with a 4:1 burst ratio.
What's included
- Rated 5000 PSI and 10 GPM for high-pressure hot-water use
- Handles water up to 300°F
- Stainless steel control bolt, cam, seat, and ball
- Machined brass inlet fitting; plated-steel inlet and discharge tubes
- Ergonomic handle and trigger with angled discharge tube for long runtime
- Safety lock prevents accidental valve opening
- Non-weep design; 4:1 burst ratio
- American-made, rear-load construction
Specifications
- Max Pressure
- 5000 PSI (350 bar)
- Flow
- 10 GPM (38 L/min)
- Max Temperature
- 300°F (150°C)
- Inlet
- 3/8" FNPT
- Outlet
- 1/4" FNPT
- Weight
- 1.8 lbs (0.82 kg)
- Discharge Fitting
- Brass
- Burst Ratio
- 4:1
- Special Features
- Non-Weep
