SW1165HC - Version 2
Free shipping · built to order — call for the current lead time
Low Price Guaranteed
Found it cheaper somewhere else? We'll match it. Call 800-493-7692 and we'll beat the deal.
Overview

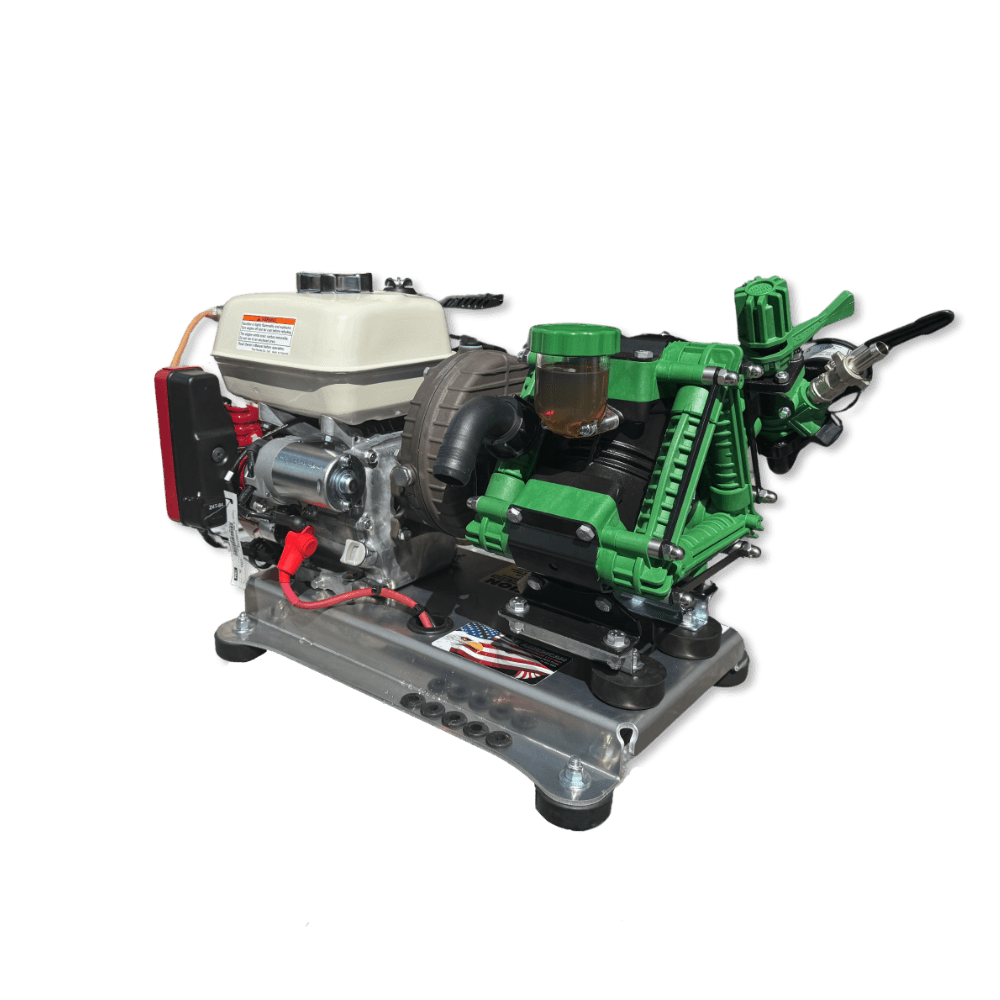

The SW1165HC Version 2 is a compact softwash skid that pairs a Honda GX200 engine with a gear-driven Comet P40 diaphragm pump, delivering up to 11.5 GPM at a max of 300 PSI. That flow-heavy, low-pressure output is exactly what soft washing calls for: pushing mix onto roofs and siding to kill mold, mildew, algae, moss, bacteria, and fungus without blasting the surface. Every wet part is chemical-resistant — Viton diaphragms and a polypropylene/stainless steel pump — so it stands up to aggressive softwash chemicals day after day. The aluminum skid frame keeps it light and serviceable, and Version 2 upgrades like the single-piece manifold and bolt-on regulator cut leak points for working crews.
What's included
- Honda GX200 engine with gear-driven Comet P40 diaphragm pump
- Chemical-resistant wet parts compatible with aggressive soft wash chemicals
- Increased flow and pressure — 11 GPM at 300 PSI
- Single-piece manifold for reduced leak points and quick service
- Bolt-on regulator prevents leaks when adjusting the pressure knob
- Molded inserts that cannot come loose
- Aluminum head plates prevent flexing of the pump heads
- Metal oil cup for impact resistance
Specifications
- Flow (GPM)
- 9.0+
- Engine
- Honda
- Drive
- Gear Drive
- Pump
- Comet P40 diaphragm (gear drive)
- Max Flow
- 11.5 GPM
- Max Pressure
- 300 PSI
- Diaphragms
- 3, Viton
- Max RPM
- 550
- Pump Material
- Polypropylene / stainless steel
- Frame
- Aluminum skid
- Inlet
- 1"
- Outlet
- 3/4"
- Bypass
- 1/2"
- Oil Capacity
- 30.4 fl oz
- Weight
- 30.2 lbs
- Ideal Application
- Professional soft washing (mold, bacteria, mildew, moss, fungus, algae)
