Hot Water Pressure Washer Skid - 4000 PSI, 7 GPM, Honda GX690, AR Pump, Belt Drive, Beckett Burner - APS Freedom Series

Flow: 7 GPM
Pressure: 4,000 PSI
Engine: Honda GX690
Pump: AR, belt

Built for

Contractors who need both high flow and high pressure with heat
Trailer, deck or truck-bed rigs fed from your own tank
Running in the field with no external power

Not for: California: this configuration isn't sold there (non-CARB fuel tank).

$7,99900

About $8,471 with checkout feesFreight free to a business, $99 to a home

Choose your Freedom Series

Compare all 6 models side by side Need cold water? The 8035, from $3,499

Financing available. Apply now with Clicklease

VisaMastercardAmexDiscoverZelle & ACH also accepted — call 800-493-7692

A 2% fuel surcharge and 3.9% processing fee are added at checkout.

Ready to ship

Freight · free to a business

Warranty

Financing available

Low Price Guaranteed

Found it cheaper somewhere else? We'll match it. Call 800-493-7692 and we'll beat the deal.

Overview

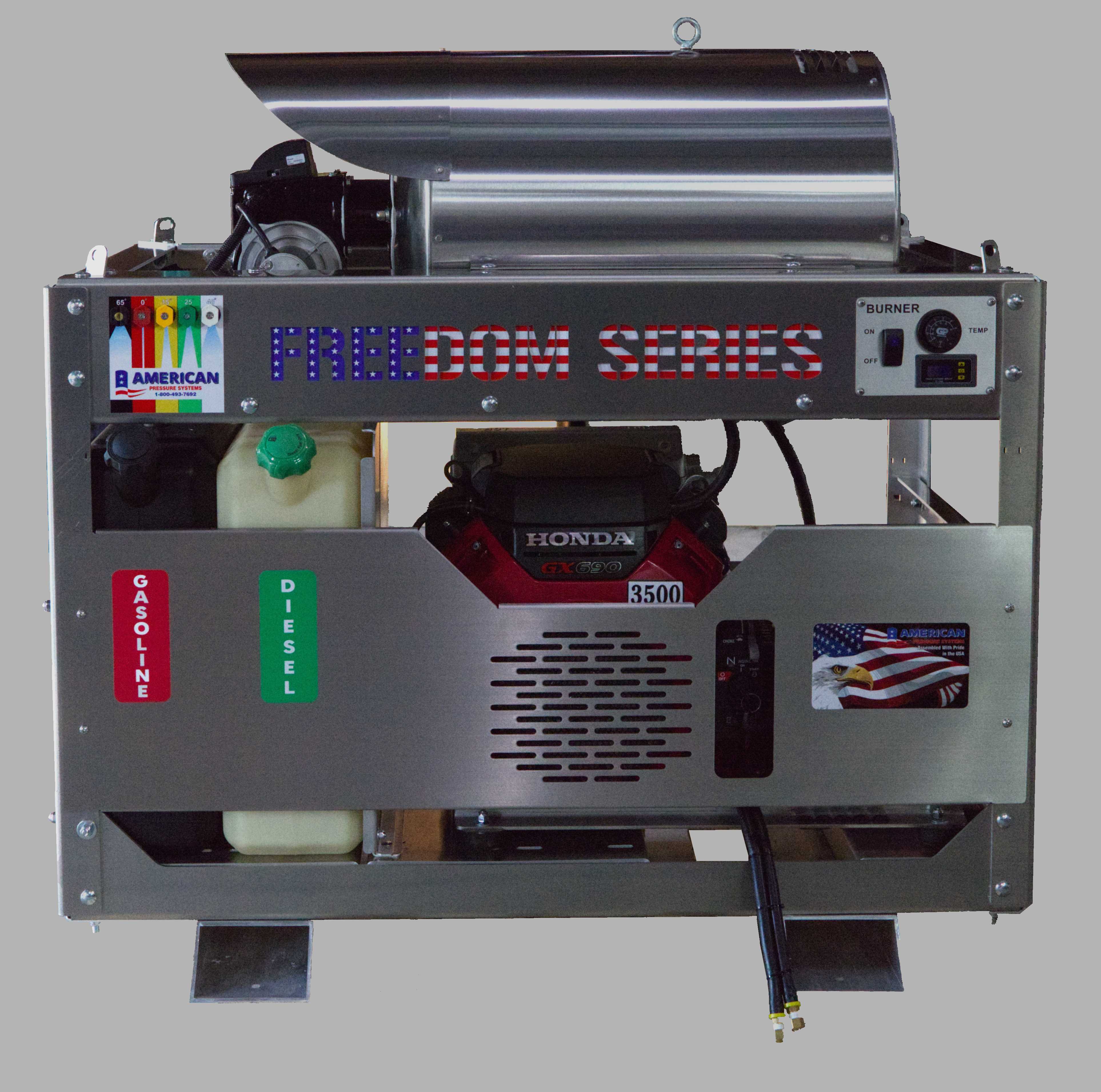

This is a self-contained hot-water pressure washer skid that puts out 4000 PSI at 7.0 GPM, driven by a Honda GX690 electric-start engine. It runs an AR Pump on a reduced-RPM 3V-X belt drive, so the pump turns slower for longer service life, and heats through a schedule 80 coil fired by a Beckett burner with an adjustable thermostat. The frame is aluminum with a stainless steel sub-frame in a low-profile, compact footprint with forklift pockets and lifting provisions. It's built for contractors who need both high flow and high pressure with heat, and want a unit ready to mount and tank-feed on a trailer, deck, or truck bed. Includes a marine-grade battery.

What's included

Honda GX690 commercial electric-start engine, marine-grade battery included
AR Pump on reduced-RPM 3V-X belt drive for long service life
Schedule 80 heating coil with stainless steel coil wrap and burner hood
Beckett burner with adjustable thermostat
Aluminum frame with stainless steel sub-frame, forklift pockets and lifting provisions
On-board 12-gallon poly fuel tank (Non-CARB; not for sale in California)
Fully self-contained, no external power required
Safety pressure relief valve plus engine and pump oil drains for easy maintenance
Ships with a spray gun and wand, high-pressure hose, quick-connect nozzles and a chemical injector

Heavy Duty

Best for: driveways, concrete, paint stripping, commercial degreasing

Specifications

Pressure (PSI): 4000
Flow (GPM): 7
Engine: Honda GX690, electric start
Horsepower: 22
Drive: Belt
Pump: AR Pump (reduced RPM)
Water: Hot
Heating Coil: Schedule 80
Burner: Beckett, adjustable thermostat
Frame: Aluminum with stainless steel sub-frame
Fuel Tank: 12 gallon poly
Dimensions: 50"L x 33"W x 50"H
Charging System: 26 amp (12V units)
Warranty: 7 yr frame / 5 yr pump / 3 yr engine
Battery: Marine-grade, included

Frequently asked questions

Yes, it includes a marine-grade battery for the electric-start Honda GX690 engine. On 12V units, a 26 amp charging system keeps it topped off while the engine runs.

No, this configuration is not for sale in California because the on-board 12-gallon poly fuel tank is Non-CARB Evaporative Compliant. A California-compliant upgrade is available under the options.

It's a skid built to mount and tank-feed on a trailer, deck, or truck bed. The low-profile aluminum/stainless frame has forklift pockets and lifting provisions, and the unit is fully self-contained with no external power required.

The frame measures 50"L x 33"W x 50"H, a compact footprint designed for versatile installation on a trailer, deck, or truck bed.
